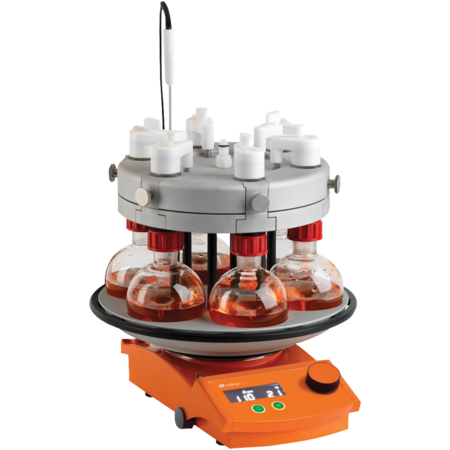

Carousel 6 Plus Reaction Station

The patented Carousel 6 Plus simultaneously heats, stirs and refluxes multiple samples under an inert atmosphere.
Accepts round bottom flasks including: 5-ml, 10-ml, 25-ml, 50-ml, 100-ml, 170-ml and 250-ml sizes.

Features

  • Powerful, even stirring - fits on to a Carousel stirring hotplate.
  • Rapid heating to 180 ˚C.
  • Quick to set-up and easy to use.
  • Water-cooled reflux head.
  • Perform reactions under an inert atmosphere.
  • Easy viewing of flask contents during experiments.
  • 250 ml Azeotropic (Dean & Stark) flask option.
  • PTFE caps feature a 'quick-thread' for fast attachment to flasks.

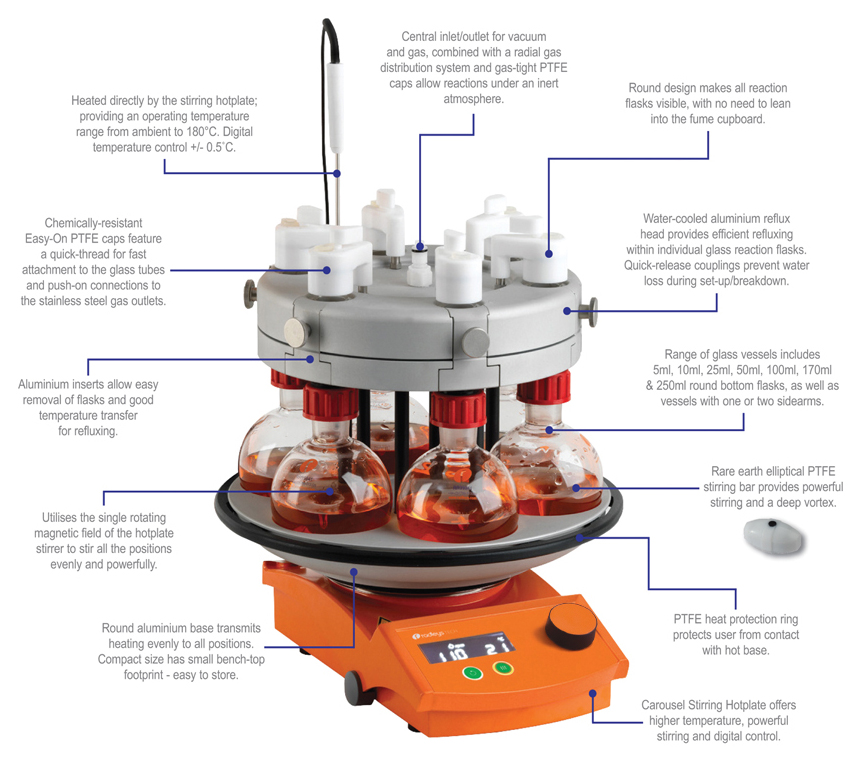

Rapid heating and efficient refluxing

  • Innovative well design for improved heat transfer and reduced temperature variation.
  • Circular, solid aluminium base transmits heat rapidly and evenly to all positions.
  • Boils six flasks of water in less than 25 minutes.
  • PTFE heat protection ring helps protect user from accidental contact with hot base.
  • Removable aluminium inserts in reflux head allow easy removal of flasks, yet maintain good heat transfer for refluxing.
  • Acetal quick-release valved couplings on the side of reflux head allow disconnection of cooling water without loss of water.
  • Acetal quick-release coupling on top of the reflux head facilitates supply of inert gas orvacuum.

Easy-On PTFE caps
Chemically-resistant PTFE the caps are attached to the reaction tube using a quick-thread and feature an Easy-On push connection to the radial gas system. The caps include an on/off valve for isolation and removal from the inert gas system. A replaceable silicone Suba-Seal septum allows the addition or removal of samples or reagents from the tube.

Reactions flasks are available in a wide range of styles.

  • Precision engineered, round bottom design ensures an excellent fit with the Carousel's wells, maximising heat transfer.
  • Flasks feature a central B24/B29 Rodaviss joint for connection to the reflux tube.
  • Standard flasks - Choice of sizes: 5-ml, 10-ml, 25-ml, 50-ml, 100-ml,  170-ml and 250-ml.
  • Standard flasks with sidearms - available with B14/23 and B24/29 sidearm options and include Rodaviss caps and sealing septa.

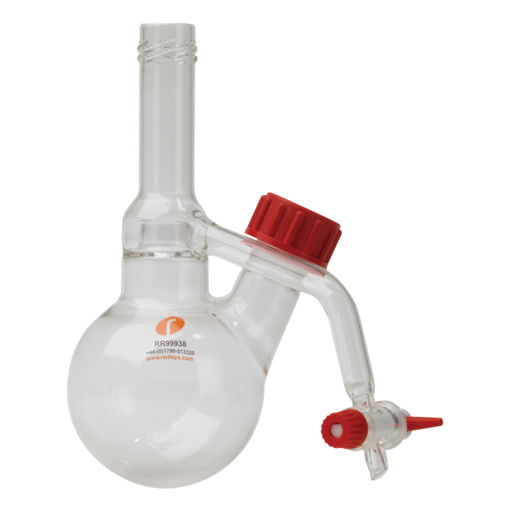

  • Azeotropic flasks (Dean and Stark) - Unique, single piece flasks fit directly into the Carousel 6 Plus, allowing chemists to perform up to six azeotropic processes in parallel.
  • Wide neck flasks with quick coupling - allow easier removal of viscous or solid samples and facilitate the use of the anchor and propeller style PTFE stirrer blade options (Tornado).
  • Feature a 50mm ID flat flange with a Nitrile o-ring, and our unique self-centering PTFE collar to offer a leak-tight seal between the glass flask and wide neck reflux tube.
  • Wide neck flasks with sidearms - either one or two sidearms. Ideal for attaching dropping funnels or powder funnels.
  • Wide neck flasks with baffles and sidearms - improve the turbulence within the flask by disrupting the creation of a central vortex. Baffled flasks are recommended for use with stirrer paddles for maximum effect.

 Liquid and solid addition funnels

  • Choice of 50ml liquid additions dropping funnels with B14/23 or B24/29 Rodaviss joints.
  • The dropping funnels are ideal for the controlled addition of larger volumes of reagent directly into the reaction flask. Funnels feature a drip cone and pressure equalising arm for ease of addition.
  • Choice of solid additions funnel with B14/23 or B24/29 Rodaviss joints; ideal for the addition of powders or solids into the reaction flask.



Carousel 6 Plus Reaction Station - Models

Carousel 6 Plus System 33

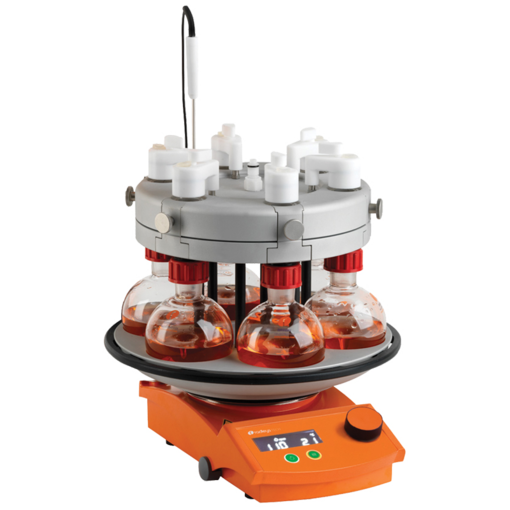

Carousel 6 Plus System 34

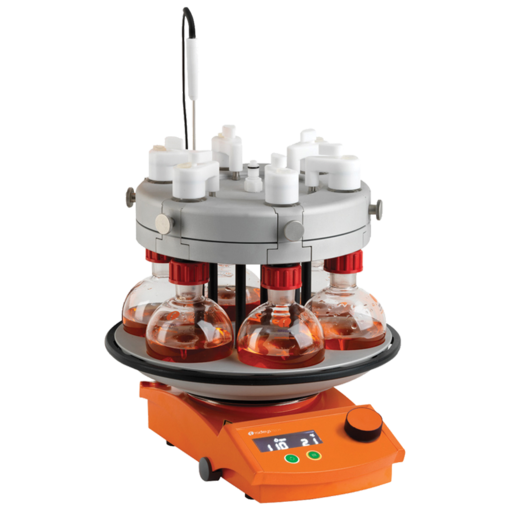

Carousel 6 Plus System 35

Carousel 6 Plus System 36

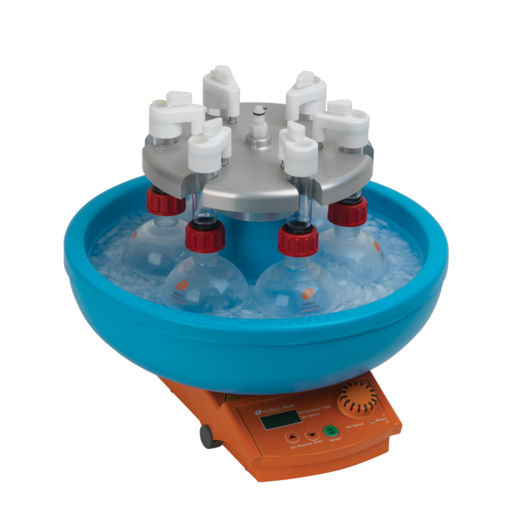

Cooled Carousel 6 Plus System 38

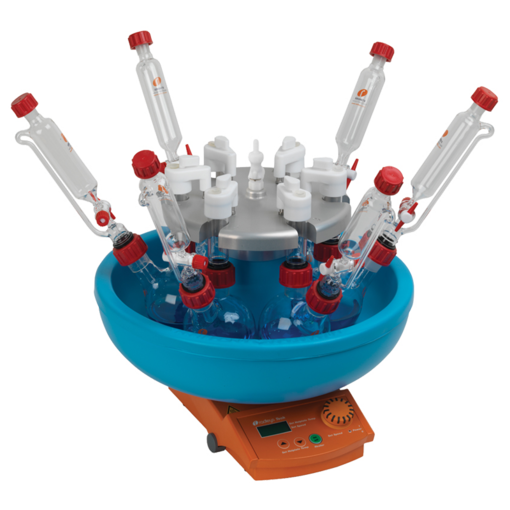

Cooled Carousel 6 Plus System 39

Carousel 6 Plus Reaction Station - AddOns

Carousel Work-Up Station

12 position parallel work-up

Carousel 6 Plus Reaction Station - Accessories

Carousel 6 Plus Reaction Station

Easy-On PTFE Cap

Carousel Tech Stirring Hotplate

115V US Plug

Carousel Temperature Controller

Silicone Septa for PTFE Caps

PTFE Magnetic Stirring Bar Retriever 350mm

250ml Reaction Flask + Reflux Tube + Connecting Set

B24/29 Rodaviss Sealing Cap

Rotary Evaporator Adapters

Ordinary B29 Socket to B24 Cone

100ml Reaction Flask

2 x 250ml Azeotropic Reaction Flask, pk 3

Aluminum Insert for 100ml Reaction Flask, pk 6

Reaction Flask Support Ring

pk 6

Elliptical Stirring Bar 25mm RE, pk 10

Tubing for inert Gas or Reflux Cooling 2 meters, 1pk

250ml Reaction Flask with B24/29 Sidearm + Septa Port, pk 6

2x B24/29 Liquid Additions Dropping Funnel + Pressure Equalising arm, pk 3

B24/29 Solid Additions Funnel, pk 3

PTFE/Silicone Septa 29mm- B24/29, pk 50

Cooled Carousel 6 Plus (Reservoir, Head, Stand + Cover)

Digital Thermomoeter (-250 to +400 Degrees C) + 200mm Probe

Dry Ice Scoop

Cold Temp. Apron 160mm long Waterproof

Protective Face Shield
