- Vertical Autoclaves
- |
- Model 5075 ELVCP - 230V

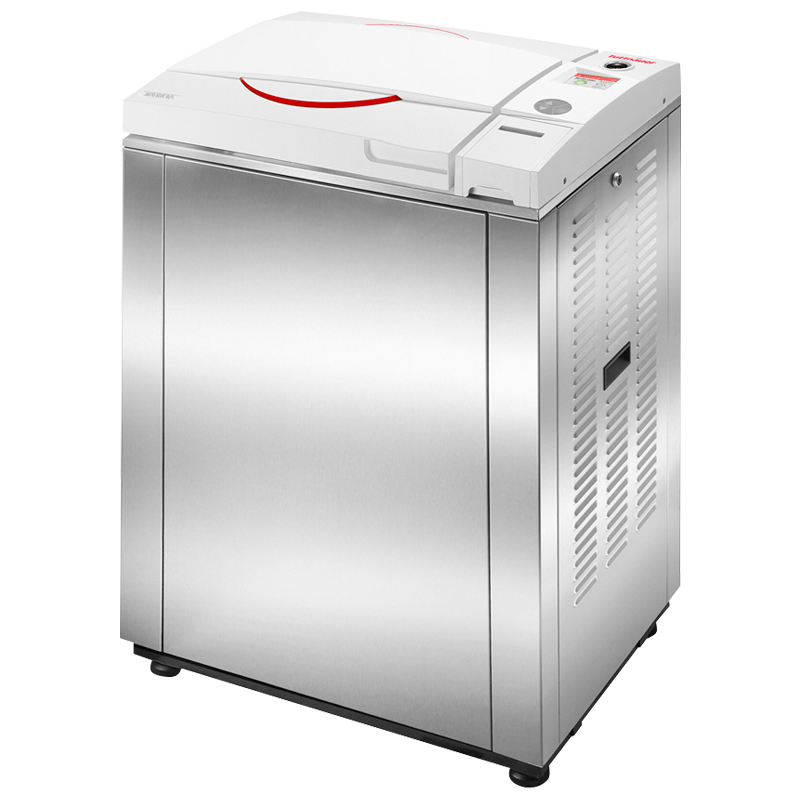

Model 5075 ELVCP - 230V
P/N: 023210990
The 5075ELVCP model sterilizer has chamber dimensions of 15 x 27.2 inches. Max available height is 29 inches.
The unit comes standard with an internal thermometer, water sensing electrode, external pressure gauge, and a printer.
This unit runs at 3-phase 230V and comes with a set of 2 large wire baskets.
The unit requires utility connection to treated water, tap water, compressed air, and a floor sink.
Compressed air can be connected to this unit to use its cooling function. (023250023)
3 Year Warranty

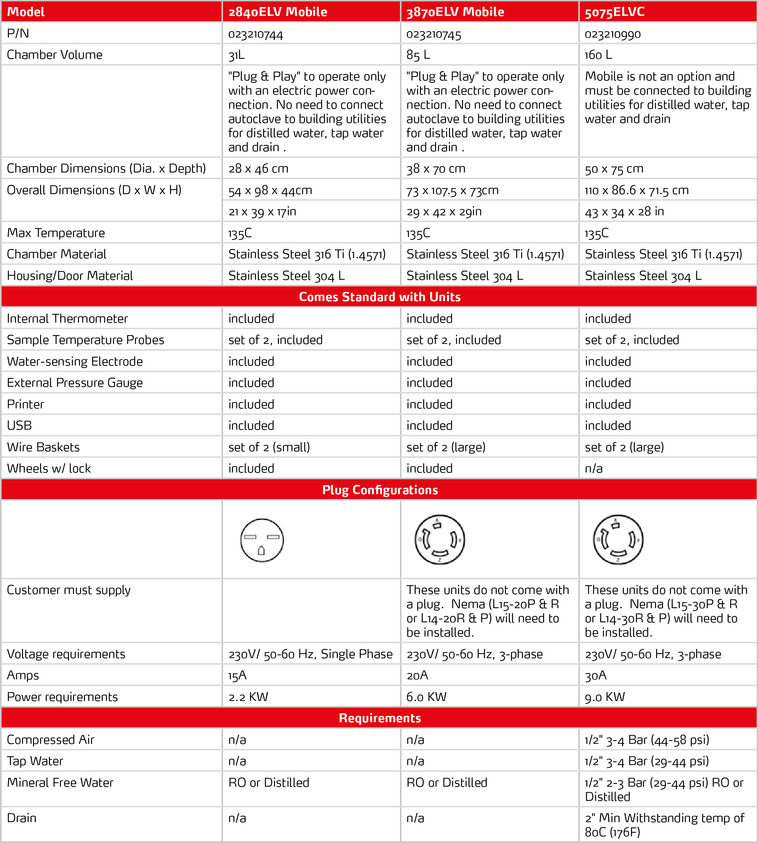

Technical Data
Model 5075 ELVCP - 230V
Power
230V, 3 phase (60Hz) NEMA L15-30
Chamber Volume
160 L
Height
29 in
Chamber Dimensions
19.7" x 29.5"
External Dimensions
34.3" x 42.9" x 30.3"
Utilities
Treated Water, Tap Water, Compressed Air, Floor Sink
Wastewater Tank
N/A
Cooling Water Tank
N/A
Quiet Air Compressor for Models with Cooling
023250023
Accessories
Vertical Autoclave Accessories
Autoclave Baskets
Stainless steel wire baskets and containers in different sizes for all autoclave models
