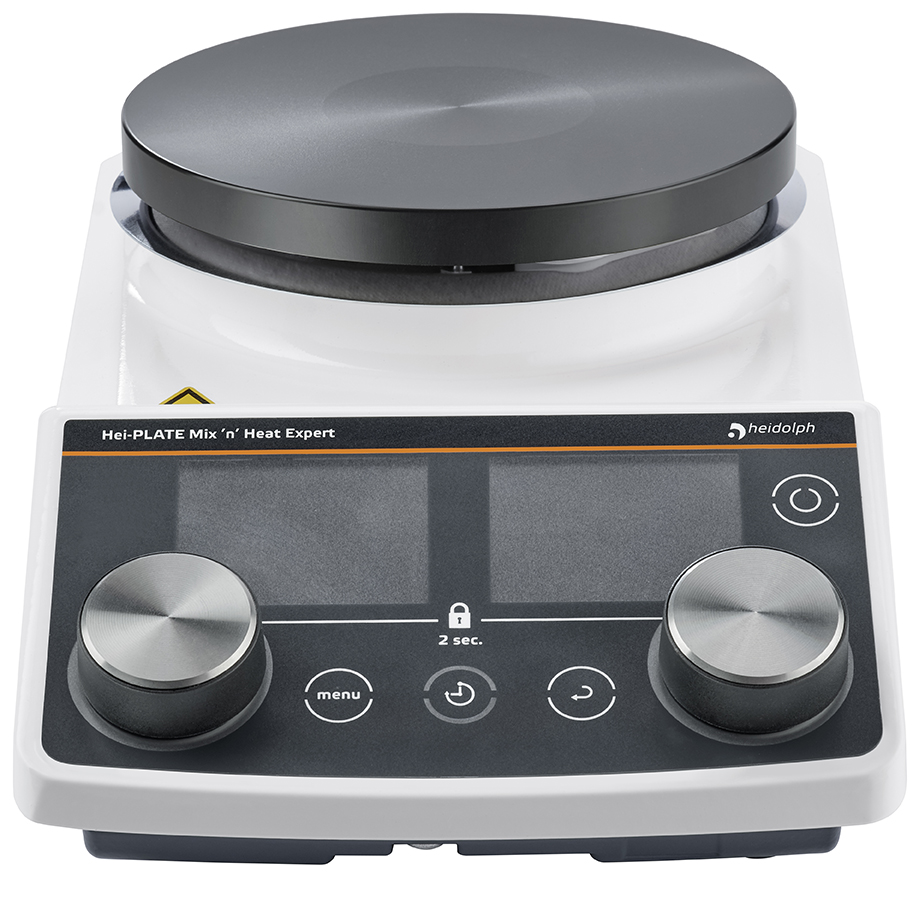

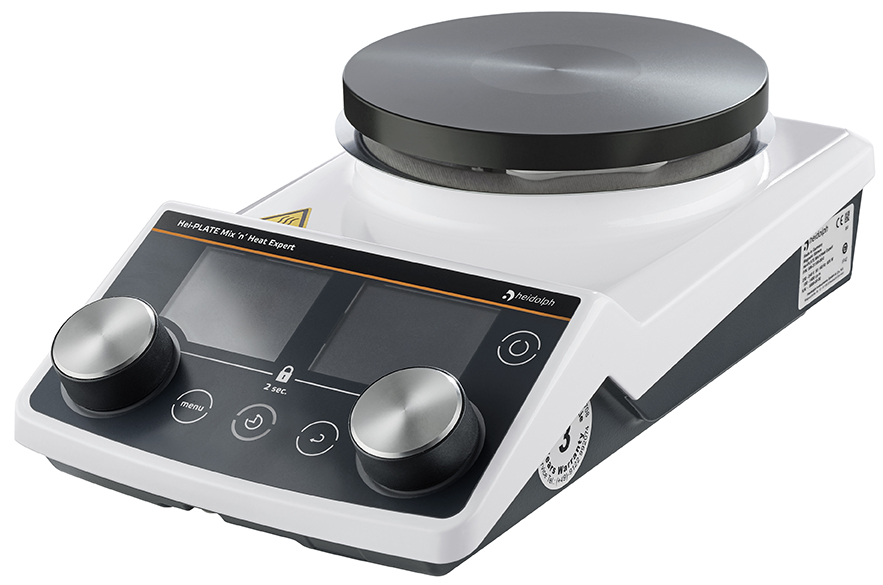

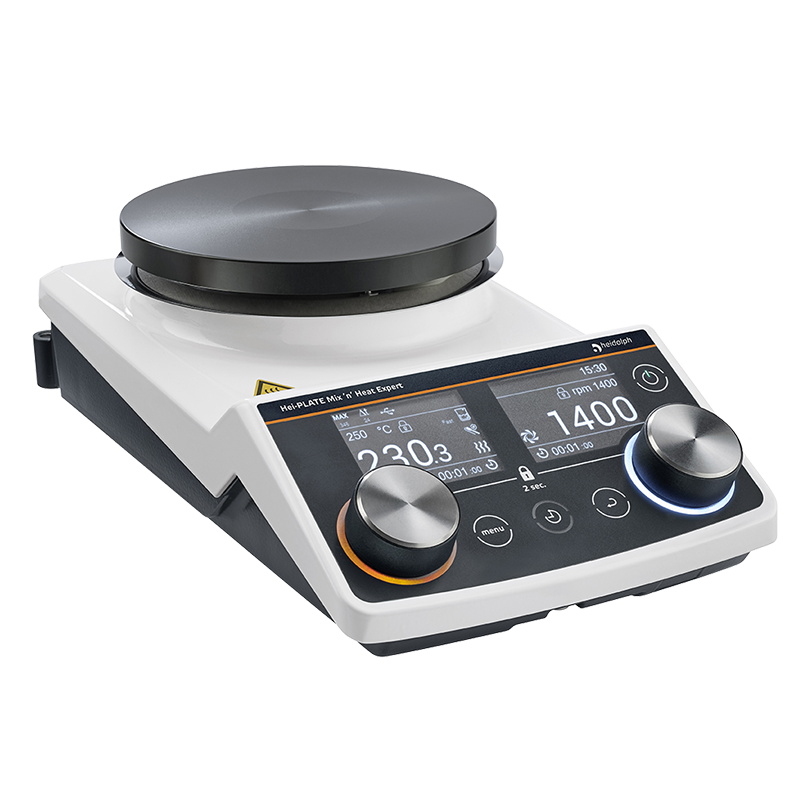

Hei-PLATE Mix 'n' Heat Expert

Magnetic Stirrers

Hei-PLATE Mix 'n' Heat Expert - Technical Data

Dimensions (w/d/h)168 x 299 x 106 mm
Usable Surface heating plate135 / 145 mm
Weight 3 kg
Max. Load25 kg
DriveEC motor, counterclockwise/clockwise rotating
Rotation speed range100 – 1,400 rpm
Heating power800 W at 230 V (EU) 600 W at 115 V (US)
Temperature range 20 – 350 °C, setting accuracy 1 K
Heating controlPID
Temperature measurement accuracy Operation with external temperature measuring sensor Pt1000: ± 0.2 K, plus tolerance Pt1000
Temperature measurement resolution0,1 K
Display2 x TFT display
Protection class (EN 60529) IP 42
Acoustic pressure< 50 db(A)
Rated Voltage230 V, 50/60 Hz (EU) 115 V, 50/60 Hz (US)
ConnectionL+N+PE
Protection class IEC 60529 I
Overvoltage CategoryII
Degree of pollution 2
Power inputNormal operation 230 V: 825 W (EU) / 115 V: 625 W (US) Standby mode: 1.7 W
EMC classB, Group 1
Permissible ambient conditions5 – 31 °C at up to 80 % rel. humidity, 32 – 40 °C at up to 50 % rel. humidity (linearly reducing)
Installation altitudeup to 2,000 m asl

Hei-PLATE Mix 'n' Heat Expert - Accessories

1-l Heating bath

PTFE-coated

1-l Heating bath for oil

Max. temperature 250 °C

2-l Heating bath

PTFE-coated

2-l Heating bath for oil

Max. temperature 250 °C

4-l Heating bath

PTFE-coated

4-l Heating bath for oil

Max. temperature 250 °C

Adapter plate 135 mm

Concave block adaptor

Double sensor Pt1000 (V4A)

Glass coat for temperature sensor

Heating bath liquid

Up to 220 °C

Pt1000 clamping system

Pt1000 temperature sensor – stainless steel (V4A)

Pt1000 clamping system for bath attachments from 3 to 5 liter (Hei-PLATE Mix 'n' Heat)

RS 232 cable (9-pole)

Silicone protective cover

Hei-PLATE Mix 'n' Heat

Stirring bars - cross shape (16.5 mm)

Stirring bars - cylindrical shape

Stirring bars - oval shape (15x6 mm)

Stirring bars - oval shape (25x10 mm)

Stirring bars - oval shape (30x10 mm)

Stirring bars Evaluation Kit

Support rod 500 mm Ø13

Set glass sensor

Hei-PLATE Mix 'n' Heat Expert - Packages

Hei-PLATE Reflux Package Expert

Hei-PLATE Reflux Package Expert Mini

Hei-PLATE Sensor Advanced Package Expert

Hei-PLATE Sensor Basic Package Expert
