Hei-PLATE Mix 'n' Heat Ultimate

Magnetic Stirrers

Hei-PLATE Mix 'n' Heat Ultimate - Technical Data

Dimensions (w/d/h)168 x 299 x 106 mm
Usable Surface heating plate145 mm
Weight 3 kg
Max. Load25 kg
DriveEC motor, counterclockwise/clockwise rotating
Rotation speed range100 – 1,400 rpm
Heating power800 W at 230 V (EU) 600 W at 115 V (US)
Temperature range 20 – 350 °C, setting accuracy 1 K
Heating controlPID
Temperature measurement accuracy Operation with external temperature measuring sensor Pt1000: ± 0.2 K, plus tolerance Pt1000
Temperature measurement resolution0,1 K
Display2 x TFT display
Protection class (EN 60529) IP 42
Acoustic pressure< 50 db(A)
Protection class IEC 60529 I
Overvoltage CategoryII
Power inputNormal operation 230 V: 825 W (EU) / 115 V: 625 W (US) Standby mode: 1.7 W
EMC classB, Group 1
Permissible ambient conditions5 – 31 °C at up to 80 % rel. humidity, 32 – 40 °C at up to 50 % rel. humidity (linearly reducing)

Hei-PLATE Mix 'n' Heat Ultimate - Accessories

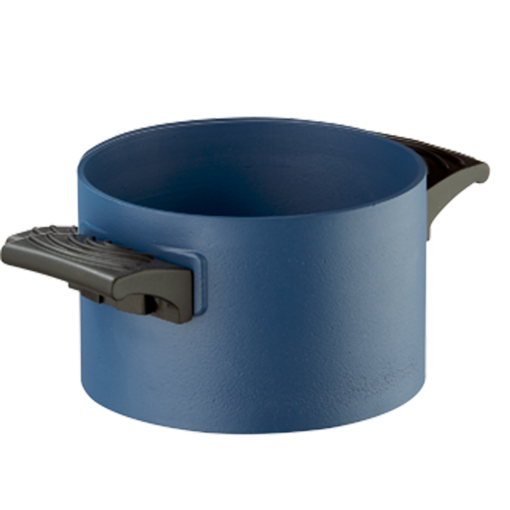

1-l Heating bath


1-l Heating bath for oil

Max. temperature 250 °C

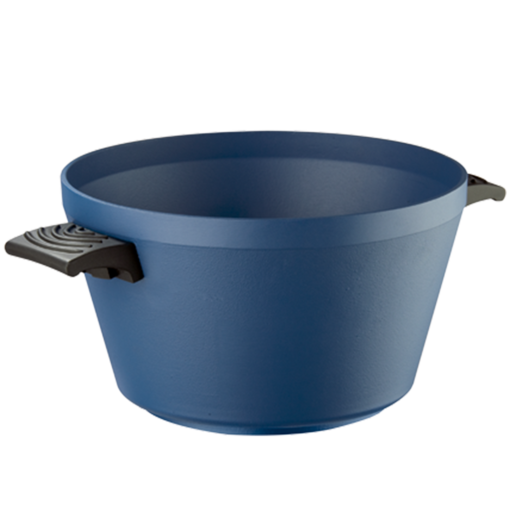

2-l Heating bath


2-l Heating bath for oil

Max. temperature 250 °C

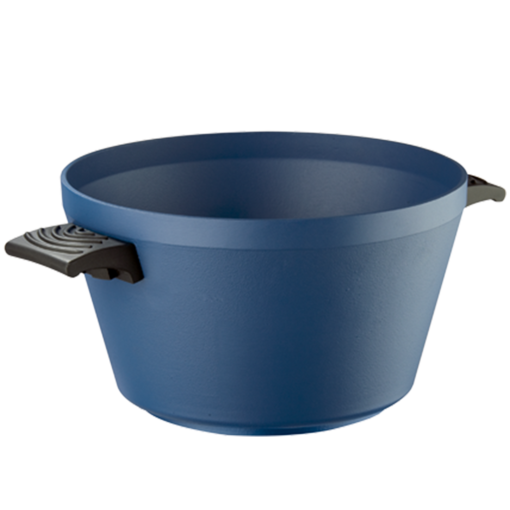

4-l Heating bath


4-l Heating bath for oil

Max. temperature 250 °C

Adapter plate 135 mm

Concave block adaptor

Heating bath liquid

Up to 220 °C

Pt1000 clamping system

Pt1000 temperature sensor – stainless steel (V4A)

Pt1000 clamping system for bath attachments from 3 to 5 liter (Hei-PLATE Mix 'n' Heat)

RS 232 cable (9-pole)

Silicone protective cover

Hei-PLATE Mix 'n' Heat

Stirring bars - cross shape (16.5 mm)

Stirring bars - cylindrical shape

Stirring bars - oval shape (15x6 mm)

Stirring bars - oval shape (25x10 mm)

Stirring bars - oval shape (30x10 mm)

Stirring bars Evaluation Kit

USB B cable

Double sensor Pt1000 (V4A)

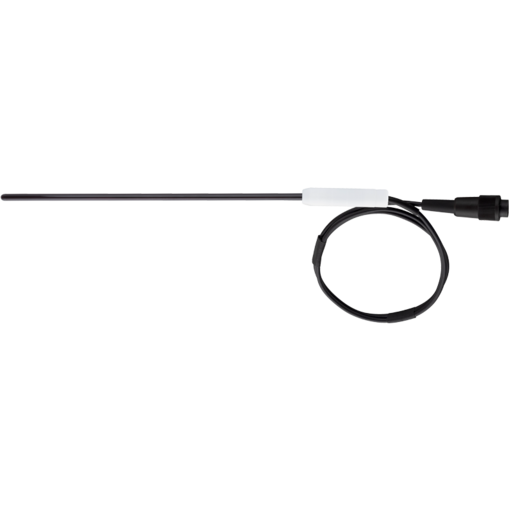

Glass coat for temperature sensor

e-Lift accessories set

Set glass sensor

Hei-PLATE Mix 'n' Heat Ultimate - Packages

Hei-PLATE Lift Package Ultimate

Hei-PLATE Sensor Advanced Paket Ultimate

Hei-PLATE Sensor Basic Package Ultimate
