Reactor-Ready Lab Reactor

Radleys

Reactor-Ready Lab Reactor

Swap reaction vessels in minutes, not hours

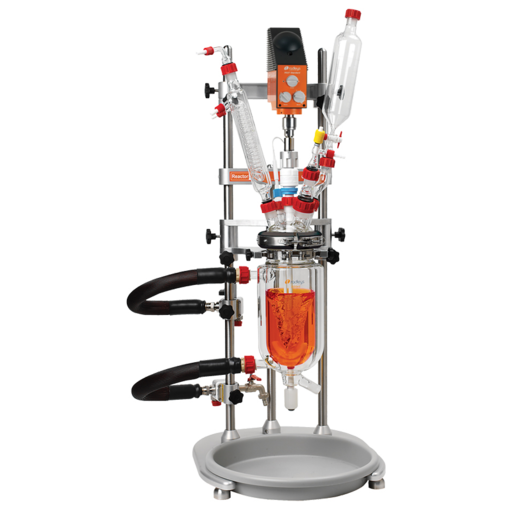

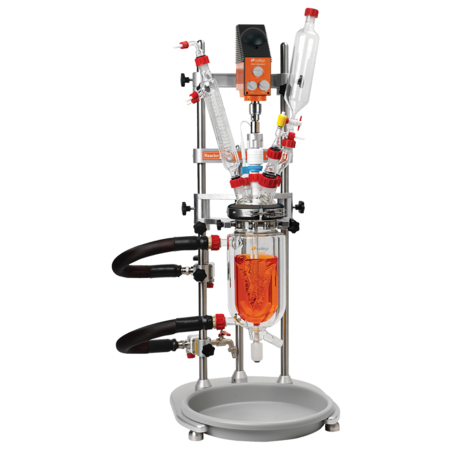

Reactor-Ready is designed as a universal reactor work station with a range of easily interchangeable vessels from 100 ml to 5 liters which can be configured to suit the chemistry and scale needed for each project. Easy to use, this one unique framework can replace many, saving money and fumehood space.

Features

  • Rapid, tool-free vessel exchange with quick-release vessel clamp and hose couplings.
  • Range of single and vacuum jacketed vessels from 100 ml to 5 litres.
  • Process vessels to mimic larger scale plant or manufacturing reactors.
  • Accepts all leading brands of overhead stirrer and allows easy, tool-free adjustment.
  • Triple support stand features heavy duty stainless steel support rods for stability.
  • Self aligning stirrer coupling engages without the need for tools.
  • Innovative hose manifolds allow easy thermofluid drain down.
  • Temperature range: -70 ºC to +230 ºC.
  • Wide range of accessory glassware including condensers, dropping funnels etc.
  • Optional software allows you to log and control stirrers, circulators, balances, pumps, temperature sensors and other devices.

Ordering Reactor-Ready

  1. Select the Core.
  2. Choose Manifold & Hose Kit.
  3. Choose from DN200 lids available in 6 or 7 necks in glass.
  4. Choose the Vessel Kit or Kits you require by selecting the vessel volume & style.
  5. Select the Heidolph Overhead Stirrer you require.
  6. If you need a thermo regulator, hoses, hose adapters, thermo fluid or accessory glassware, then select from the accessory list.
  7. If you need automation, add the Control Software Kit and Data Hub.

Reactor-Ready Lab Reactor - Models

Reactor-Ready Core System

Reactor-Ready Lab Reactor - Accessories

Double Circulator Manifold & Hose Kit

Single Circulator Manifold & Hose Kit

250-ml Single Jacketed Vessel Kit

250-ml Vacuum Jacketed Vessel kit

500-ml Single Jacketed Vessel kit

500-ml Vaccum Jacketed Vessel kit

1000-ml Single Jacketed Vessel kit

1000-ml Vacuum Jacketed Vessel kit

2000-ml Single Jacketed Vessel kit

2000-ml Vacuum Jacketed Vessel kit

5000-ml Single Jacketed Vessel kit

5000-ml Vaccum Jacketed Vessel kit

100-ml Single Jacketed Process Vessel Kit

100-ml Vacuum Jacketed Process Vessel Kit

250-ml Single Jacketed Process Vessel Kit

250-ml Vacuum Jacketed Process Vessel Kit

500-ml Single Jacketed Process Vessel Kit

500-ml Vacuum Jacketed Process Vessel Kit

1000-ml Single Jacketed Process Vessel Kit

1000-ml Vacuum Jacketed Process Vessel Kit

2000-ml Single Jacketed Process Vessel Kit

2000-ml Vacuum Jacketed Process Vessel Kit

5000-ml Single Jacketed Process Vessel Kit

5000-ml Vacuum Jacketed Process Vessel Kit
