Industrial Rotary Evaporator Enclosure

P/N: 035100230

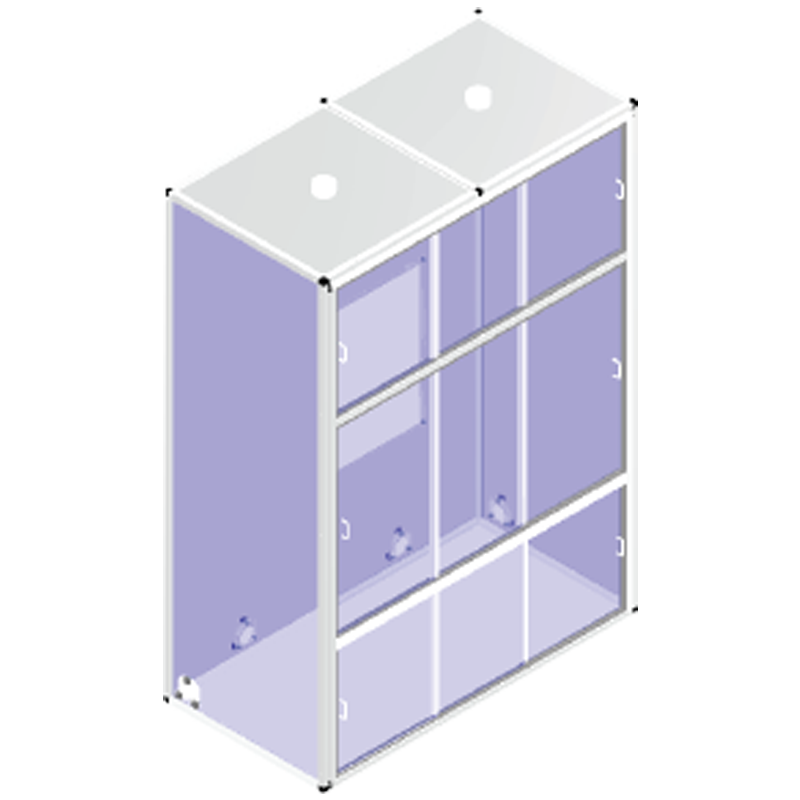

AirClean® Systems Freestanding Total Exhaust Enclosure was designed to accommodate large scale 20L rotary evaporators. The freestanding enclosure will accept all major brands of evaporators and may fit other laboratory devices. The enclosure has three levels of access, each featuring three horizontal sliding panels offering easy access to all areas of the rotary evaporator for operation and service.

Features:

  • Optional removable spill base for secondary containment
  • Top exhaust hookup standard; side exhaust hookup optional
  • Rear access panel for instrument service
  • Dual exhaust collar hookup



Industrial Rotary Evaporator Enclosure - Technical Data

External Dimensions
Width 68"
Depth 34.75"
Height 96"









Internal Dimensions
Width 66"
Depth 32"
Height 94"











Specifications

Airfolw characteristics
Airflow requirements at max opening1 650CFM required to maintain 60LFM at maximum opening1
Change in Pressure Drop 0.7in wg/100ft
Construction
Super structure Polycarbonate
Side material Polycarbonate
Sash material Polycarbonate
Base open-no base
Access panels 4 panels - circular with cover located at midpoint of enclosure
Weight 300 lbs.


1Maximum opening is defined as center door fully opened with top and bottom doors closed.
