Hei-VAP Ultimate Control

Rotary Evaporators

The Hei-VAP Control principle

Hei-VAP Expert Control and Ultimate Control allow to centrally control all process parameters: vacuum, cooling temperature, rotation and heating bath temperature.



Evaporate with a tap:

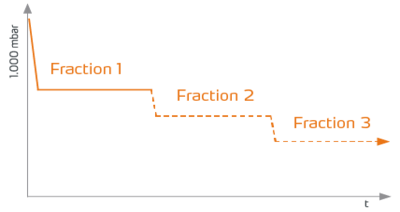

Automatic evaporation with Dynamic AUTOaccurate (DAA)



The DAA allows you to start a fully automated distillation process already during the heat-up phase of the heating bath.
The system vacuum is dynamically adjusted to the changing heating bath temperatures until the heating bath has reached its defined temperature.







Hei-VAP Ultimate Control - Technical Data

LiftHand lift or Motor lift
Rotation speed range10 - 280 rpm
Rotation speed indicator7" LCD color graphic display
Heating capacity1,300 W
Overheat protection bathcut-off at 5 °C over set temperature via separate PT 1000
Bath temperature setting7" LCD color graphic display
Heating bath temperature controlelectronic / digital
Max. size evaporating flask5 l
Integrated vacuum controllerYes
TimerYes
Integrated Hei-CHILL controllerYes
Vacuum program Dynamic AUTOaccurate
requires AUTOaccurate sensor
Yes
Programmable rampsYes
Condensing surface1,400 cm²
Condensing surface XL condenser2,200 cm²

Hei-VAP - AddOns

Valve-Regulated Vacuum Pumps

Standard vacuum pumps can be controlled manually or via valve operated vacuum controllers

Chillers

The Hei-CHILL models are specifically designed for reliable continuous operation in the laboratory offering cooling capacities of 250 to 1,200 W.

RPM-Regulated Vacuum Pumps

Controllable vacuum pumps for digital regulation of the vacuum via operation panel or directly at the unit

Hei-VOLUME Distimatic

Automatic module for Rotary Evaporators

Hei-VAP Ultimate Control- Accessories

Glassware G1

Glassware set with diagonal condenser for all standard distillations

Glassware set G1B

Coated glassware set with diagonal condenser for all standard distillations

Glassware set G3

Glassware set with vertical condenser for all standard distillations

Glassware set G3B

Coated glassware set with vertical condenser for all standard distillations

Glassware set G3 XL

Glassware set with vertical condenser for maximum evaporation performance

Glassware set G3B XL

Coated glassware set with vertical condenser for maximum evaporation performance

Glassware set G5

Glassware set with dry ice condenser for low-boiling solvents

Glassware set G5B

Coated glassware set with dry ice condenser for low-boiling solvents

Glassware set G6

Glassware set with vertical condenser for reflux distillation

Glassware set G6B

Coated glassware set with vertical condenser for reflux distillation

Evaporating flask 50 ml

Evaporating flask 100 ml

Evaporating flask 250 ml

Evaporating flask 500 ml

Evaporating flask 1,000 ml

Evaporating flask 2,000 ml

Evaporating flask 3,000 ml

Evaporating flask 5,000 ml

Powder flask 500 ml

Powder flask 1,000 ml

Powder flask 2,000 ml

Receiving flask 100 ml

Coated receiving

flask 100 ml

Receiving flask 250 ml

Coated receiving

flask 250 ml

Receiving flask 500 ml

Coated receiving

flask 500 ml

Receiving flask 1,000 ml

Coated receiving

flask 1,000 ml

Receiving flask 2,000 ml

Coated receiving

flask 2,000 ml

Receiving flask 3,000 ml

Coated receiving

flask 3,000 ml

Evaporating cylinder

1,500 ml

Evaporating cylinder

500 ml

Spider with 6 distillation sleeves à 20 ml

Spider with 12 distillation sleeves à 20 ml

Spider with 20 distillation sleeves à 20 ml

Spider with 5 flasks

à 50 ml

Spider with 5 flasks

à 100 ml

Foam brake with flask clamp

Guard hood

Guard shield

Spare vapor tube

Tubing set 12 m

Tubing for vacuum and water connection

Tubing by meter

Tubing for vacuum and water connection

Enforced cooling tube

For cooling

Vacuum seal PTFE / FFKM

For applications with highly abrasive solutions

Vacuum seal PTFE / FKM

spare seal

Heating bath liquid

Up to 220 °C

Ventilation and Replenishment Valve

For precise dosing during the process

Extension cable

For operation outside closed fume hoods

Holding device

For all Hei-VAP operating panels

Vapor temperature sensor

AUTOaccurate-Sensor

Control-Box

Subsequent upgrade for Hei-VAP Expert and Hei-VAP Ultimate models with Control function

Aqua-Stop

RS 232 cable

Switchbox

Connect up to three rotary evaporators to one vacuum pump

Manual vacuum controller

Control your house vacuum or any other vacuum source

Hei-VAC Control

Digital vacuum control

Woulff bottle - Hei-VAP 2019

Additional recovery of solvent to protect vacuum valve and vacuum pump

Vacuum valve

Required to control vacuum for
Hei-VAP Precision models with valve-regulated pumps

Downloads & Video

Downloads

Brochure - Multifunctional individualists Download
At a glance-Hei-VAP 2019_EN.pdf Download
NRTL-Certificate-Rotary-Evaporators.pdf Download
Hei-VAP-Certificate-for-continuous-operation.pdf Download
CE-Rotationsverdampfer-Rotary-Evaporators.pdf Download
Chiller Selection Matrix Download
Vacuum Configurator Matrix Download
Hei-Distimatic-Onepager_EN.pdf Download
Solvent data Download
Buyer's Guide - Cooling options for rotary evaporators Download
Buyer's Guide - Vacuum sources for rotary evaporators Download
Operation-Manual-Rotary Evaporator-Hei-VAP-Expert-Ultimate.pdf Download

Video

FAQ

A spider NS 24/29 can be used on an evaporator with NS 24/40. There is no adapter or other accessories needed.

To check the tightness of the cooling circuit, please proceed as follows ...

Yes, the rotary evaporator can be flooded with inertgas via the ventilation valve of the vacuum box ...
