StarFish Multi-Experiment Workstation

Radleys

StarFish Multi-Experiment Workstation

The space saver

A modular, general purpose heating and stirring work station.

Whether you want to just heat and stir, or perform more complex parallel experiments, StarFish really can make your life easier and improve productivity.

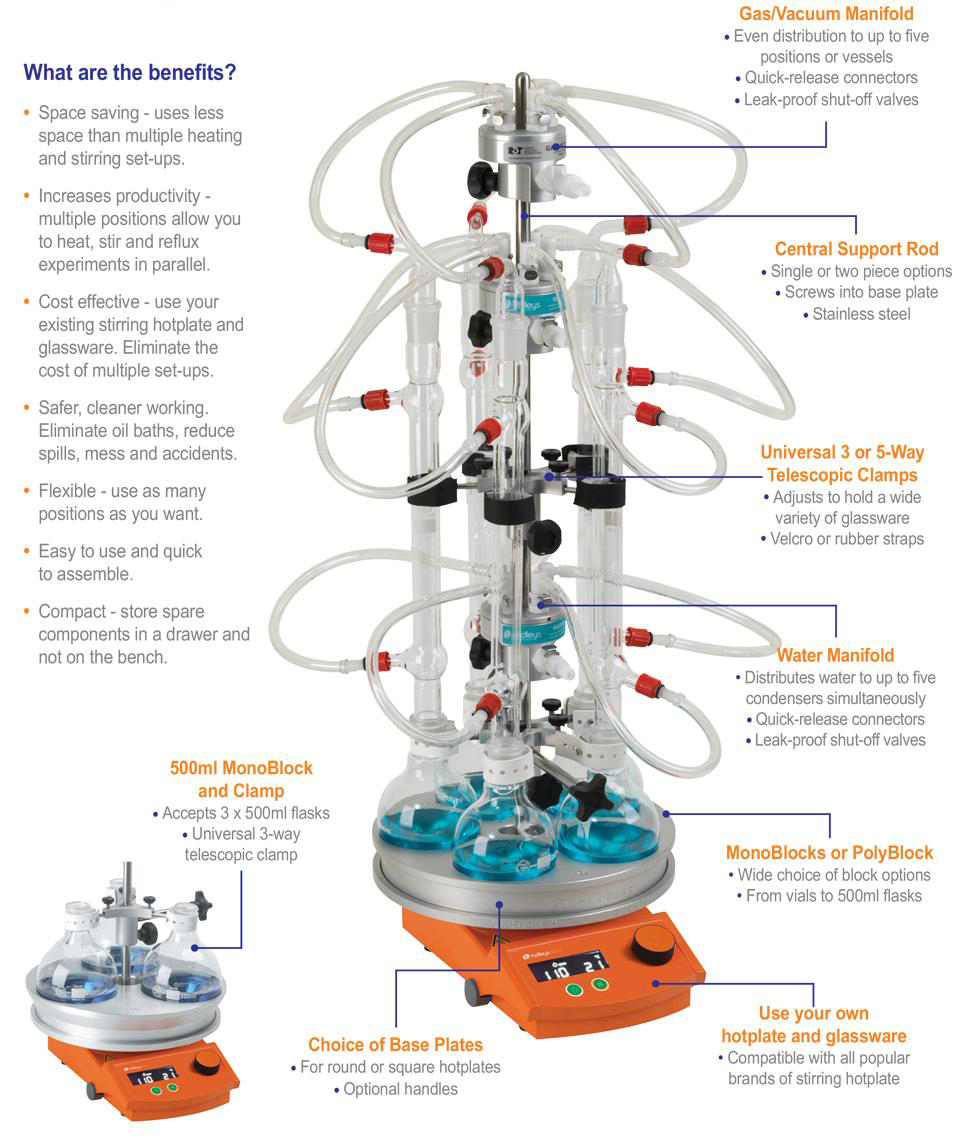

Features

  • Uses less space than multiple heating and stirring set-ups.
  • Fits all leading brands of stirring hotplate.
  • Accepts flasks, test tubes, vials and beakers.
  • Set-up vessels individually or in parallel.
  • More productive - Heat, stir and reflux experiments in parallel.
  • Safer, cleaner working - Eliminate oil baths, reduce spills, mess and accidents.
  • Easy to use and quick to assemble.

Applications
Heating and stirring, synthesis, distillation, extraction, digestion and concentration

Universal 3 or 5-Way Telescopic Clamps

  • Adjusts to hold a wide variety of glassware
  • Velcro or rubber straps

Water Manifolds

  • Distributes water to up to five condensers simultaneously
  • Quick-release connectors with leak-proof shut-off valves

Gas/Vacuum Manifolds

  • Even distribution to up to five positions or vessels
  • Quick-release connectors with leak-proof shut-off valves

Choice of Base Plates

  • For round or square hotplates with optional lifting handles

MonoBlocks or PolyBlock

  • Wide choice of block options
  • From vials to 500-ml flasks

Central Support Rod

  • Single or two piece stainless steel rods
  • Screws into base plate

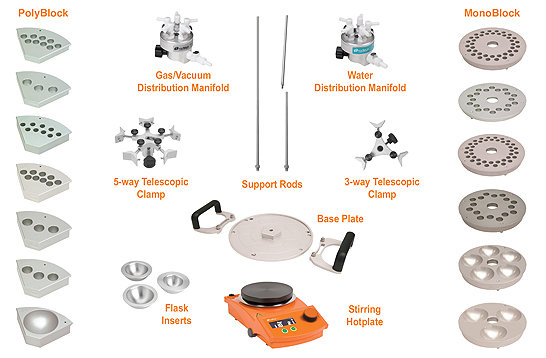

StarFish Components





StarFish Multi-Experiment Workstation - Models

StarFish base plate

145mm plate, for Heidolph

Learn more
Base plate handles

StarFish base plate handles, 1 pair

Learn more
MonoBlock for 40 x 12mm tubes

Learn more
MonoBlock for 40 x 16mm tubes

Learn more
MonoBlock for 16 x 24mm tubes

Learn more
MonoBlock for 16 x 25mm tubes

Learn more
MonoBlock for 2ml vials, 40 x 12mm

Learn more
MonoBlock for 1 dram vial, 40 x 15mm

Learn more
MonoBlock for 2 dram vials, 40 x 17mm

Learn more
MonoBlock for 4 dram vials, 20 x 21mm

Learn more
MonoBlock for 16 x 28mm vials

Learn more
MonoBlock for 5 x 250ml flasks

Learn more
MonoBlock for 3 x 500ml flasks

Learn more
150-ml Flask Insert

Learn more
100-ml Flask Insert

Learn more
50-ml Flask Insert

Learn more
25-ml Flask Insert

Learn more
10-ml Flask Insert

Learn more

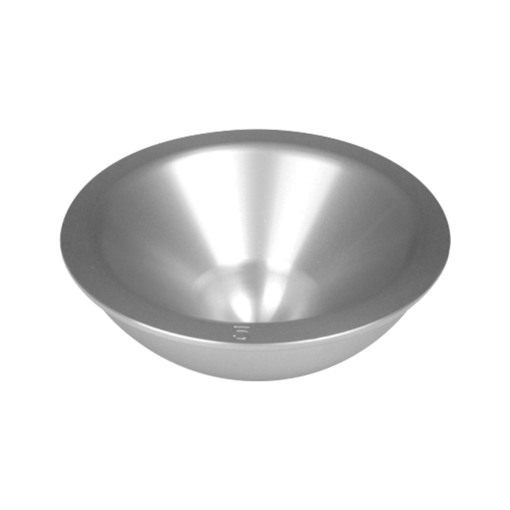

5-ml Flask Insert

Learn more
PolyBlock for 9 x 12mm tubes

Learn more
PolyBlock for 9 x 16mm tubes

Learn more
PolyBlock for 3 x 24mm tubes

Learn more
PolyBlock for 3 x 25mm tubes

Learn more
PolyBlock for 2ml vials, 9 x 12mm

Learn more
PolyBlock for 1 dram vialm 9 x 15mm

Learn more

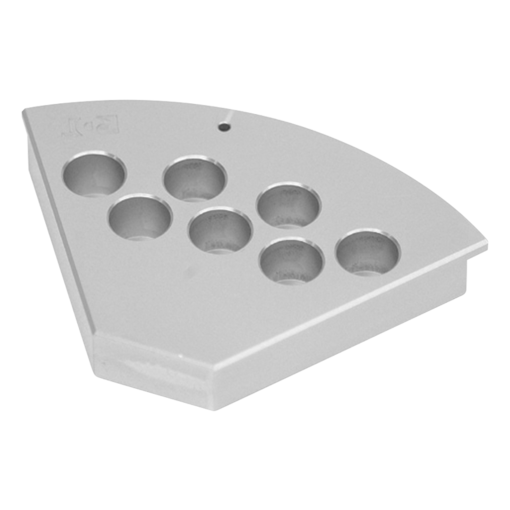

PolyBlock for 2 dram vials, 7 x 17mm

Learn more
PolyBlock for 4 dram vials, 3 x 21mm

Learn more
PolyBlock for 3 x 28mm vials

Learn more
PolyBlock for 1 x 250ml flask

Learn more

StarFish Multi-Experiment Workstation - Accessories

Telescopic 3-way clamp

including Velcro

Telescopic 3-way clamp

including silicone strap and extended handle

Telescopic 3-way clamp

including Velcro

Telescopic 5-way clamp

including silicone strap and extended handle

Replacement self-adhesive Velcro pads

10pcs

Replacement Velcro look strips, 200mm

5pcs

Silicone strap, 200mm

5pcs

Viton strap, 200mm

5pcs

Water manifold with connectors

Gas/Vacuum manifold with connectors

Support rod, 650mm

Split support rod, 650mm
