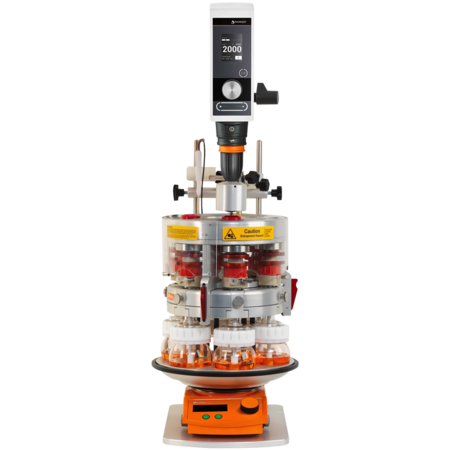

Tornado Plus Overhead Stirring Station

Use a single overhead stirrer to stir up to six round bottom flasks from 50 ml to 250 ml simultaneously. Increase your stirring productivity by up to 600 %.

The Tornado allows powerful, controlled mechanical stirring of round bottom flasks with the Carousel 6 Reaction Station; offering unrivalled stirring for both viscous samples and for the dispersion of delicate solids in solution.

Features

  • Integrates with Carousel 6 to provide heated and stirred reactions.
  • Rapid heating to 180 ˚C, with water cooled reflux head.
  • Perform reactions under an inert atmosphere.
  • Accepts 50-ml, 100-ml and 250-ml round bottom flasks.
  • Uses a single overhead stirrer - save space and money compared with multiple set-ups.
  • Compatible with all leading brands of overhead stirrer.
  • 2-speed drive allows overhead stirrers with less torque to be used for higher viscosities.
  • Stir to 1,000 rpm in low viscosity
  • Max. viscosity 10,000 mPas at 500 rpm.

Choice of flask sizes and styles; with wide neck option
Wide neck flasks allow easier removal of viscous and solid samples and the use of larger stirrer blades. Baffles also improve stirring by disrupting the creation of a vortex.
In order to purchase the displayed setup a series of part numbers must be ordered, there is no single part number.

Start With:

  • Carousel 6 Plus Reaction Station
  • Tornado OH Stirrer Station
  • Stand which includes base and support rods

To customize Tornado for your application choose the below accessories which you require. For ordering assistance contact your Heidoph Application Specialist.

  1. Heidolph magnetic stirring hotplate
  2. Choose a temperature controller (based on which hotplate chosen)
  3. Additional rod and extension to attach the controller to (varies with type of controller)
  4. Reflux Tubes
  5. Wide neck flasks
  6. Tubing if hooking up to inert gas
  7. Silicone seals for PTFE caps
  8. Stirrer Shafts (6 required, 1 for each flask)
  9. Heidolph overhead stirrer

Tornado Plus - Accessories

Hei-Standard, 115V

Model for standard applications without temperature sensor

Hei-Tec, 115V

Model for higher requirements with temperature sensor

Hei-Connect, 115V

Model for comprehensive process documentation and reproducible results

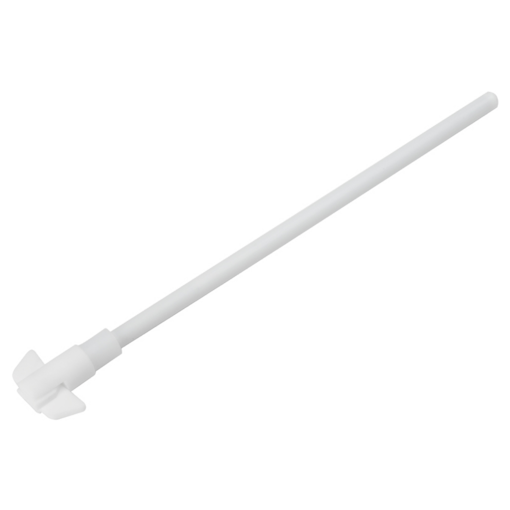

Centrifugal PTFE stirrer Shaft

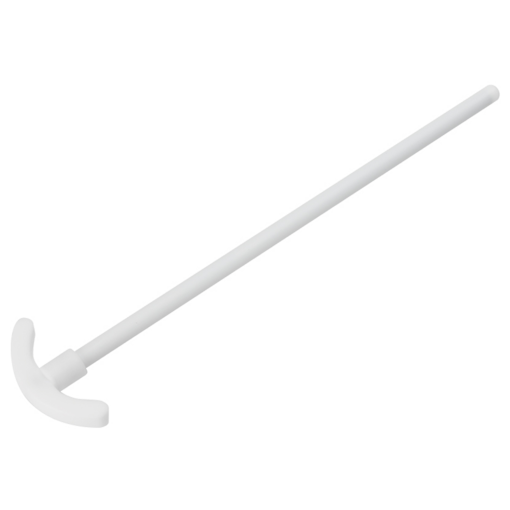

Anchor PTFE Stirrer Shaft for 100ml flask

Anchor PTFE Stirrer Shaft for 250ml flasks

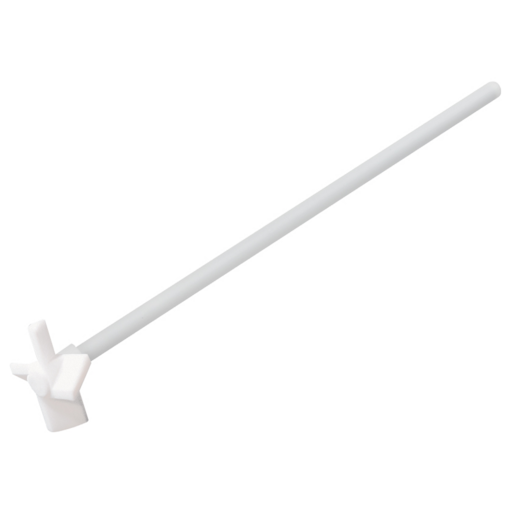

Propeller PTFE Stirrer Shaft

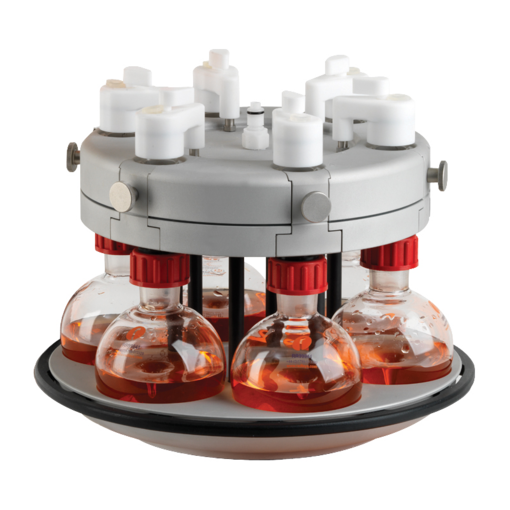

Carousel 6 Plus Reaction Station

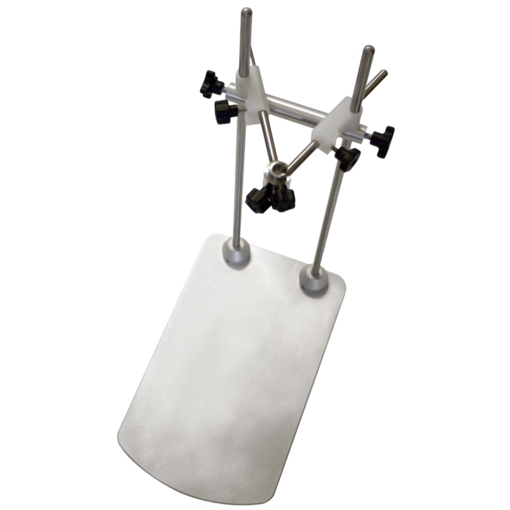

Universal support stand

Support Rod 500 x 13mm

extra long f/ Tornado

Support Rod f/ hotplate adapter

extension plate

Exta-long sensor probe

For carousel temperature controller

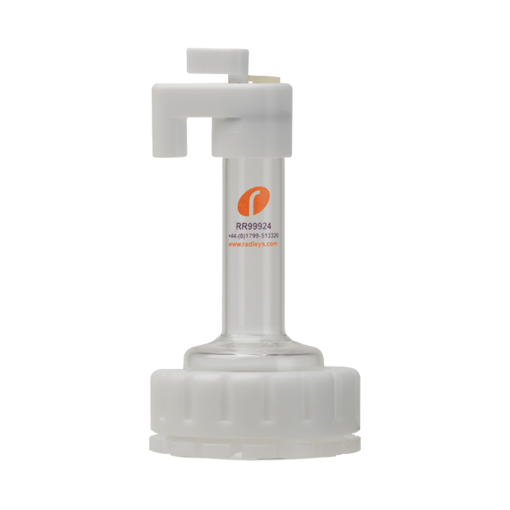

Wide Neck Reflux Tube + Coupling

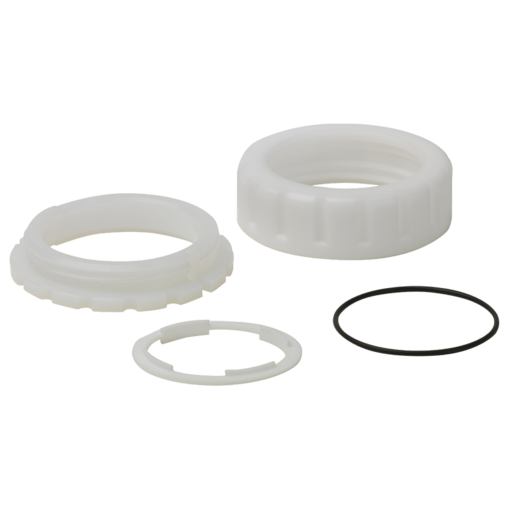

Coupling for Wide Neck Flasks

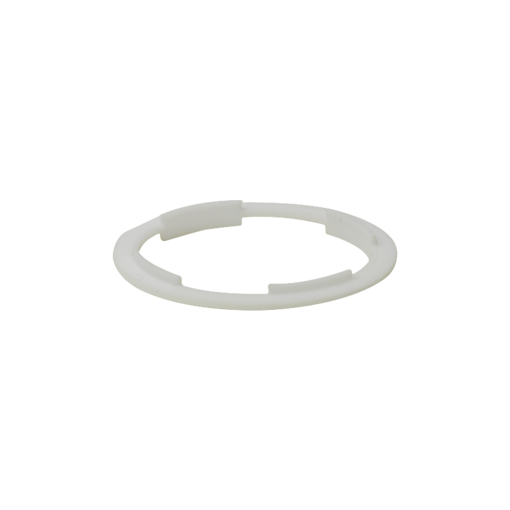

PTFE Wide Neck Support Collar

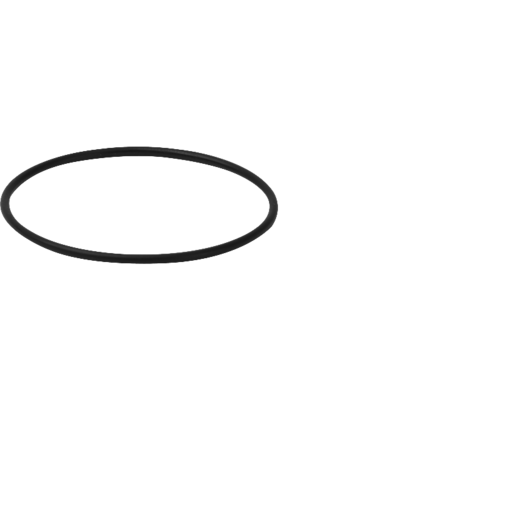

Nirtrile O-Ring for PTFE Wide Neck Support Collar

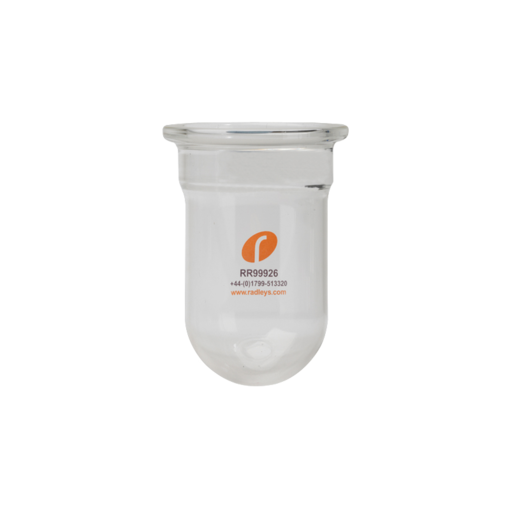

50ml Wide Neck Flask

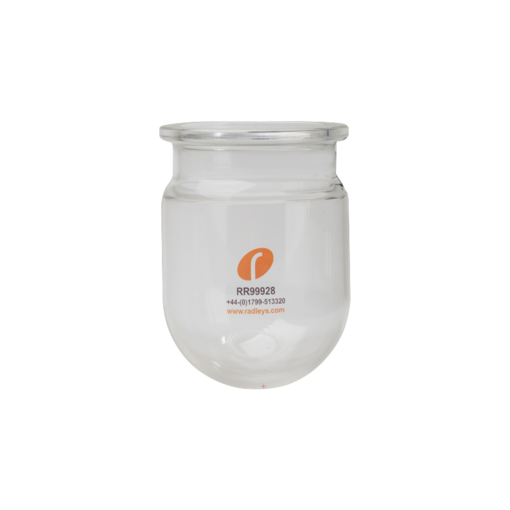

100ml Wide Neck Flask

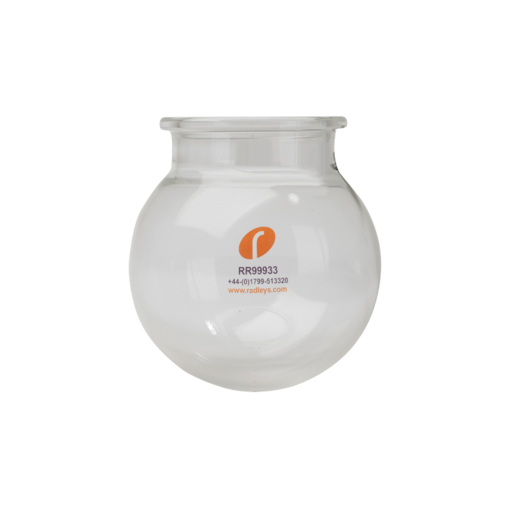

250ml Wide Neck Flask

50ml Wide Neck Flask B14/23 Sidearm + Septa Port

100ml Wide Neck Flask B14/23 Sidearm + Septa Port

100ml Wide Neck Flask 2xB14/23 Sidearm +Septa Port

250ml Wide Neck Flask B24/29 Sidearm + Septa Port

250ml Wide Neck Flask 2xB24/29 Sidearms + Septa Port

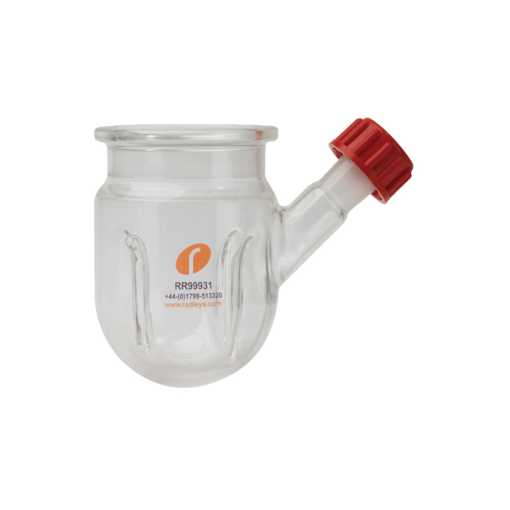

100ml Baffled Wide Neck Flask B14/23 Sidearm + Septa Port

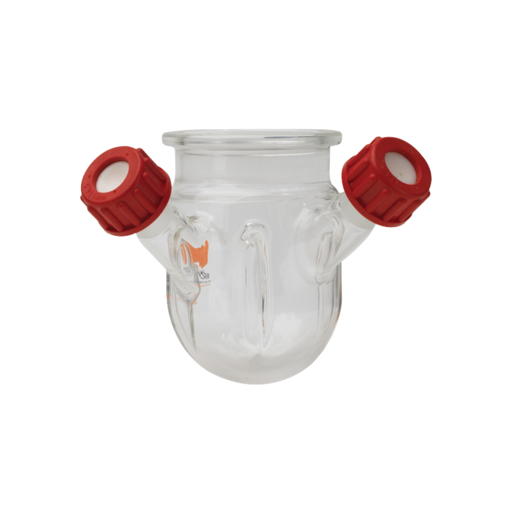

100ml Baffled Wide Neck Flask 2xB14/23 Sidearms + Septa Port

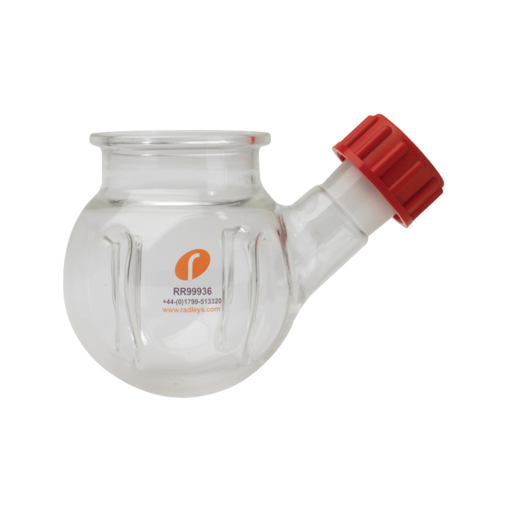

250ml Baffled Wide Neck Flask B24/29 Sidearms + Septa Port

250ml Baffled Wide Neck Fask 2xB24/29 Sidearms + Septa Port
