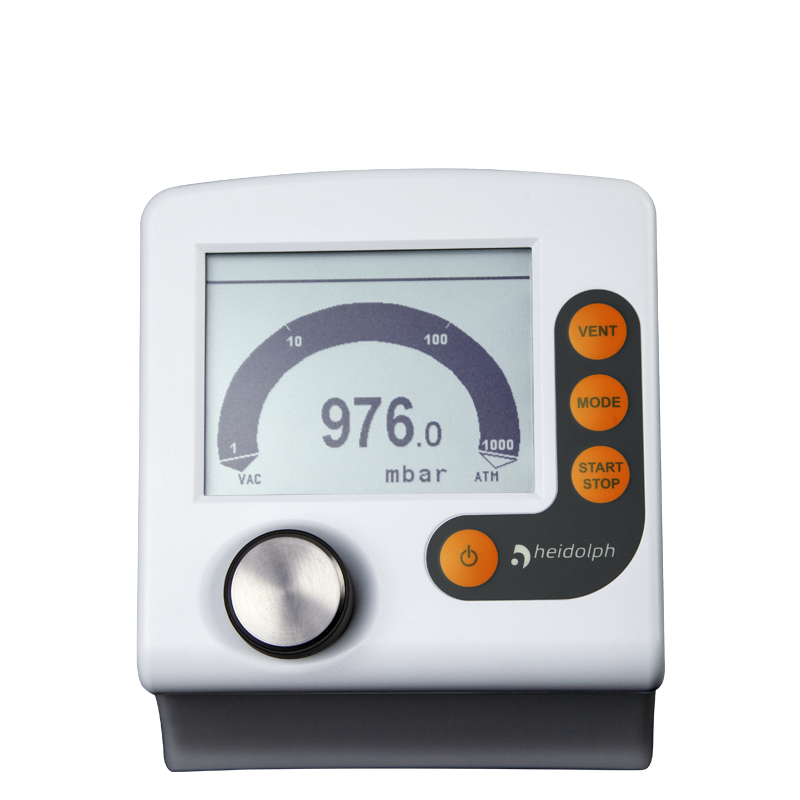

Heidolph Instruments : Vacuum Accessories : Hei-VAC Control

Hei-VAC Control - Technical Data

Vacuum sensor	Integrated
Upper measuring limit	1080/810 mbar/torr
Measurement principle	Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Accuracy of measurement	< +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.)
Ambient temperature range (operation)	10 – 40 °C
Max. media temp. for continuous operation / short times	40/80 °C
Material of outer housing	Robust plastic housing with good chemical resistance
Protection class (EN 60529)	IP 20
Protection class IEC 60529 - Residue pump	IP 42
Cable length of external power supply	2 m
Dimensions (w/d/h)	144 x 115 x 124 mm
Weight	0.44 kg

Vacuum sensor

Integrated

Upper measuring limit

1080/810 mbar/torr

Measurement principle

Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure

Accuracy of measurement

< +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.)

Ambient temperature range (operation)

10 – 40 °C

Max. media temp. for continuous operation / short times

40/80 °C

Material of outer housing

Robust plastic housing with good chemical resistance

Protection class (EN 60529)

IP 20

Protection class IEC 60529 - Residue pump

IP 42

Cable length of external power supply

2 m

Dimensions (w/d/h)

144 x 115 x 124 mm

Weight

0.44 kg
